Which components in the mechanical structure of a six axis reciprocating machine are prone to wear and tear?

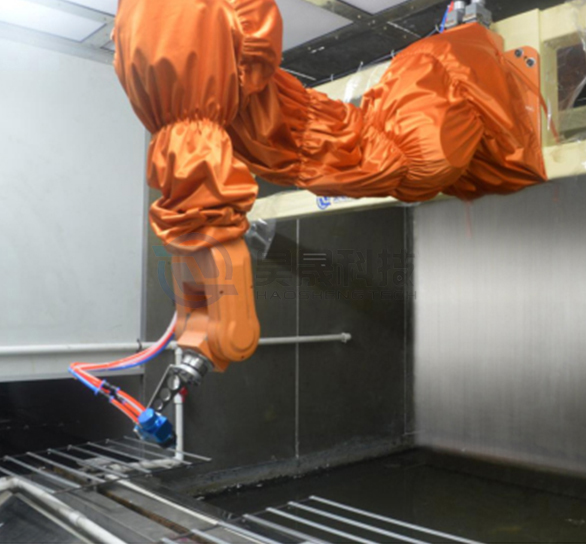

The six axis reciprocating machine is widely used in industrial production, and its efficient and stable operation depends on the good condition of each component. However, during long-term use, some mechanical components inevitably experience wear and tear, affecting equipment performance and service life.

Transmission components: The transmission system of a six axis reciprocating machine includes belts, chains, and gears. When the belt is running, it continuously rubs against the pulley. Due to tension and repeated bending, the surface of the belt is prone to wear, cracks, peeling, and even breakage, resulting in reduced transmission efficiency and unstable power transmission. The chain also experiences frequent bending and relative movement between the links, causing constant friction between the pin shaft and sleeve, and between the rollers and the sprocket teeth, resulting in chain elongation, roller wear, and issues such as tooth skipping and chain detachment, which affect the normal operation of the equipment. In gear transmission, the tooth surface is subjected to significant pressure and friction, which can lead to failure forms such as wear, pitting, and bonding. Under high-speed and heavy load conditions, wear is more severe, resulting in a decrease in gear transmission accuracy, vibration, and noise.

Guide rail slider: The guide rail and slider are key components that ensure precise linear motion of each axis in a six axis reciprocating machine. In reciprocating motion, the slider is in close contact with the surface of the guide rail and slides relative to it, constantly generating friction. If the lubrication is poor or impurities such as dust and debris enter, the wear will intensify, causing scratches and strains on the surface of the guide rail, increasing the clearance between the sliders, affecting the accuracy and stability of the movement, making the equipment positioning inaccurate, and reducing the machining accuracy.

Bearings: Bearings support the rotational motion of each shaft and bear radial and axial loads. During operation, there is rolling friction and sliding friction between the ball or roller and the inner and outer raceway. After long-term operation, the raceway surface will wear out, resulting in dents, peeling, and other phenomena. The bearing clearance will increase, the rotation accuracy will decrease, and abnormal vibration and noise will be generated. In severe cases, the equipment may get stuck and unable to operate normally.

Joint connectors: The joints of a six axis reciprocating machine are usually connected using pin shafts, bolts, and other connectors. Frequent movement causes these connecting components to bear alternating loads, and the threaded connections are prone to loosening. The mating surfaces between the pin shaft and the hole will wear due to relative micro movements, resulting in increased joint clearance and affecting the coordination and accuracy of motion between the axes.

Understanding these easily worn parts of the six axis reciprocating machine can help develop targeted maintenance plans, replace worn parts in a timely manner, ensure efficient and stable operation of the equipment, extend the service life of the equipment, and reduce production and operation costs for the enterprise.
