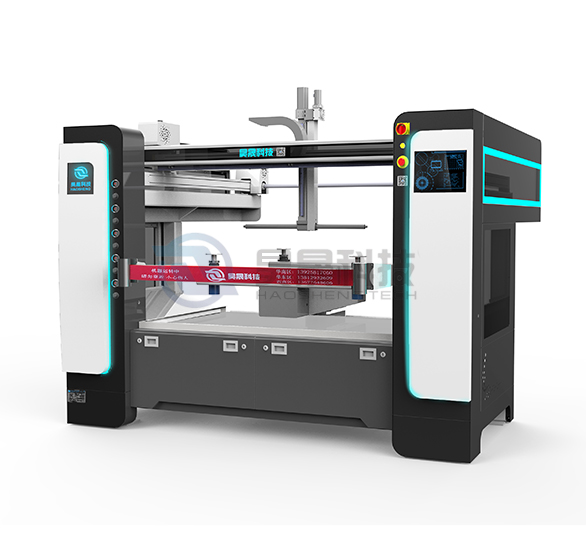

How can the strength and stiffness of the mechanical structure of a five axis reciprocating machine meet the requirements when performing heavy load m

It is crucial to ensure that the strength and stiffness of the mechanical structure meet the requirements when performing heavy load machining on a five axis reciprocating machine, which directly affects machining accuracy, equipment life, and production efficiency.

In terms of material selection, high-strength and high rigidity materials are usually chosen. For example, high-quality cast iron or alloy steel is often used in key load-bearing and moving parts such as bed frames, workbenches, screws, etc. Cast iron has good shock absorption performance, which can effectively absorb the vibration generated during the machining process, reduce the impact on machining accuracy, and at the same time, its cost is relatively low, suitable for making large foundation structural components. And alloy steel, with its high strength and good comprehensive mechanical properties, is used in parts that can withstand large loads and stress concentrations, such as lead screws, to ensure stable transmission of motion and power under high loads.

In terms of structural design, optimized design is the key to meeting strength and stiffness requirements. A reasonable layout of reinforcing plates is an effective means of enhancing structural stiffness. By reasonably arranging reinforcing plates inside the bed and other components, the bending and torsional resistance of the structure can be increased, just like the reasonable arrangement of steel bars in buildings, making the overall structure more stable. At the same time, adopting a box structure is also a common way, which can effectively improve the load-bearing capacity and stiffness of components, because the closed shape of the box structure gives it good mechanical properties in all directions.

In addition, for the guide rail system of a five axis reciprocating machine, selecting the appropriate guide rail type and configuration has a significant impact on strength and stiffness. When processing heavy loads, heavy-duty linear guides or static pressure guides are often used. Heavy duty linear guides have high load-bearing capacity and rigidity, and can withstand large cutting forces and inertial forces; Static pressure guide rails achieve non-contact motion by forming a static pressure oil film between the guide rail surfaces. This not only greatly improves the bearing capacity of the guide rail, but also reduces friction and wear, ensuring smooth and accurate motion.

In terms of connection methods, ensuring that the connections between various components are firm and reliable is the foundation for meeting strength and stiffness requirements. The use of high-strength bolt connections and reasonable control of pre tightening force can enhance the joint stiffness between components and prevent loosening and deformation under high loads. For some key parts, welding or riveting may also be used to achieve higher connection strength.

In summary, the five axis reciprocating machine meets the strict requirements for mechanical structure strength and stiffness during heavy load processing through reasonable material selection, optimized structural design, appropriate guide rail configuration, and reliable connection methods, thereby ensuring the stable operation and high-precision processing of the equipment.
