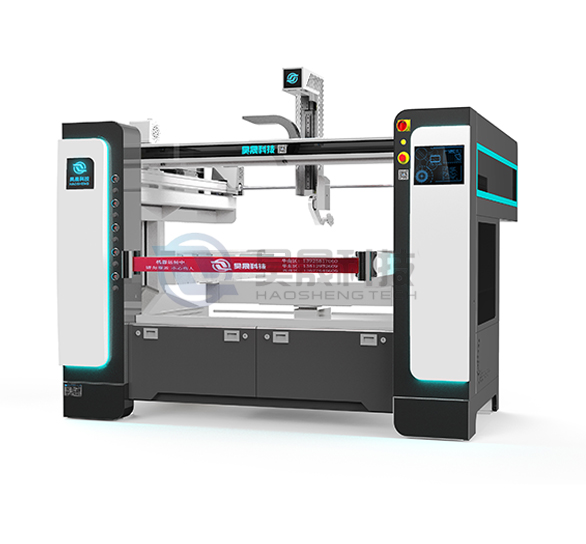

What are the vulnerable parts of a five axis reciprocating machine? How long is the replacement cycle?

The vulnerable parts and replacement cycle of a five axis reciprocating machine vary depending on specific equipment types, usage environments, and work intensity. Here are some common vulnerable parts and their approximate replacement cycles:

Transmission components:

Belt: If the five axis reciprocating machine adopts belt transmission, the belt may experience wear, aging, breakage and other problems after long-term use. Generally speaking, under normal use, the replacement cycle of the belt may be around 1-3 years, depending on the material and quality of the belt, as well as the frequency and working environment of the equipment. If the working environment of the equipment is harsh, such as high temperature, dust, etc., the wear of the belt will accelerate, and the replacement cycle may be shortened.

Guide rail slider: The guide rail slider is an important component that ensures the accuracy and stability of the five axis reciprocating machine motion. Due to long-term exposure to the friction and load of reciprocating motion, the ball or roller of the guide rail slider may wear out, and scratches or wear may also appear on the surface of the guide rail. Usually, the replacement cycle for guide rail sliders is around 2-5 years, but if the equipment requires high precision or has a very high frequency of use, more frequent inspections and replacements may be necessary.

Sealing element:

Piston rod sealing ring: During the reciprocating motion of the piston rod, the sealing ring plays a role in sealing and preventing leakage. After prolonged use, the sealing ring may lose its sealing performance due to wear, aging, or deformation. In general, the replacement cycle of piston rod seals is about 1-2 years, but if the equipment frequently operates in high temperature, high pressure, or corrosive environments, the replacement cycle will be correspondingly shortened.

Gas path sealing ring: If the five axis reciprocating machine involves the gas path system, the sealing ring in the gas path is also prone to aging, cracking, and other problems, leading to gas leakage. The replacement cycle of the gas path seal ring is similar to that of the piston rod seal ring, about 1-2 years, but it also depends on the usage environment and gas properties.

Bearing:

Linear bearing: used to support and guide the linear motion components of a five axis reciprocating machine. After long-term use, linear bearings may experience problems such as wear and increased clearance, which can affect the accuracy and stability of equipment movement. The replacement cycle of linear bearings is generally around 3-5 years, but if the equipment has a high load or frequency of movement, the replacement cycle may be advanced.

Joint bearings: Joint bearings may be used in the joint parts of five axis reciprocating machines, and the wear of joint bearings can lead to a decrease in joint flexibility and even jamming. The replacement cycle of joint bearings depends on their frequency of use and load conditions, usually around 2-4 years.

Electrical components:

Contactor: The contactor is an important component for controlling the on/off of the five axis reciprocating machine circuit. Frequent switching operations can cause wear and erosion of the contactor contacts, affecting their normal operation. The replacement cycle of contactors is generally around 3-5 years, but if the equipment is used very frequently or there is a large current surge in the circuit, the replacement cycle of contactors may be shortened.

Sensors: such as position sensors, pressure sensors, etc., used to detect various operating parameters of five axis reciprocating machines. Sensors may malfunction due to external interference, wear, or aging. There is no fixed standard for the replacement cycle of sensors, which needs to be determined based on their actual working status and performance. Generally, replacement is carried out when faults or performance degradation occur.

Nozzle (if equipped with spraying function): For a five axis reciprocating machine with spraying function, the nozzle is one of the key components. During long-term use, the nozzle may experience issues such as clogging and reduced atomization effect due to corrosion and wear of the coating. The replacement cycle of the nozzle depends on the nature of the coating, frequency of use, and maintenance situation, usually requiring replacement or cleaning within a few months to a year.
